Nelson Orbitor 3030FX Up-Top Pivot Sprinkler (White Plate)
Shipping calculated at checkout
Pickup currently unavailable
You May Also Need:

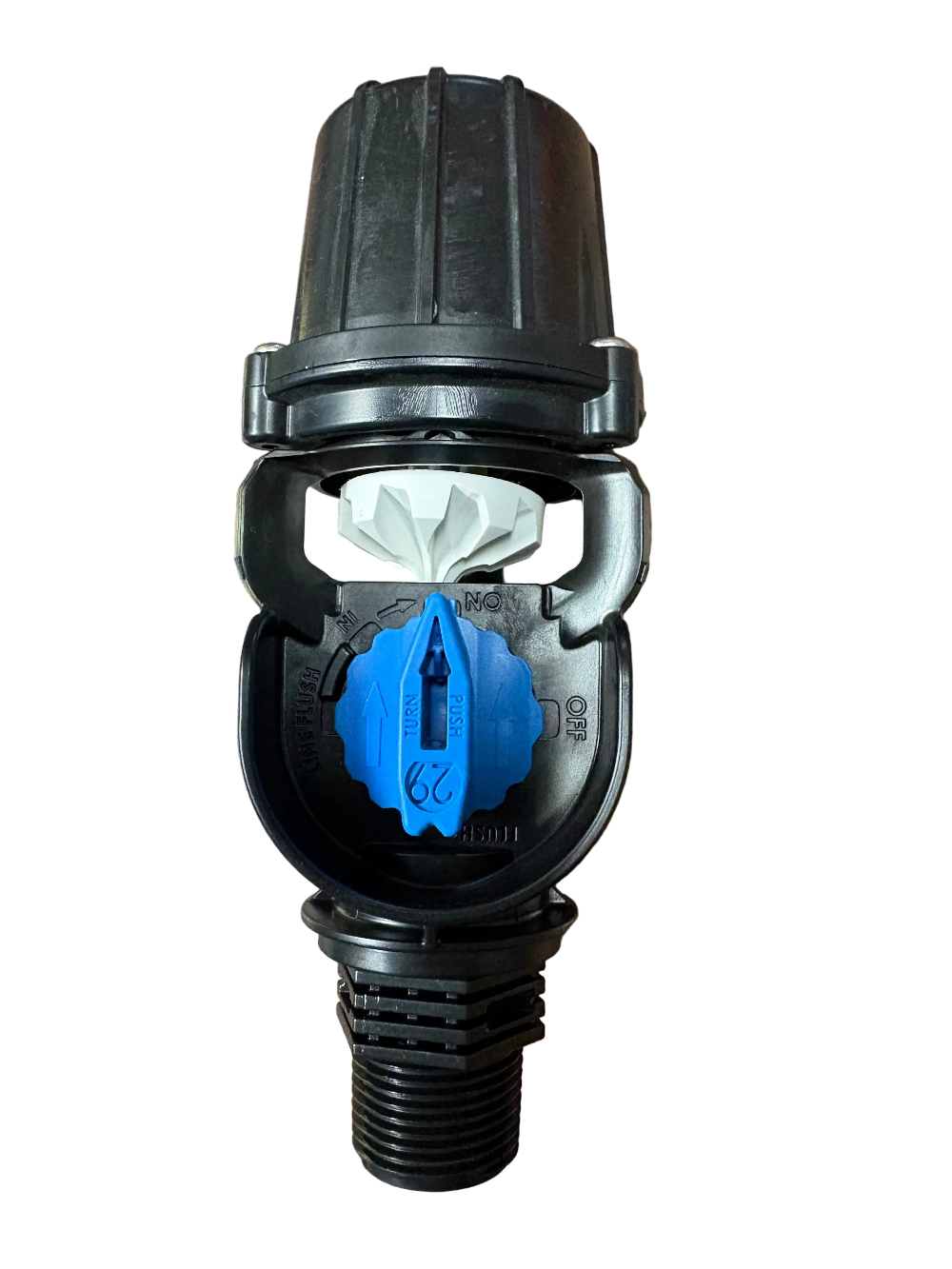

Nelson Orbitor FX 3030 White Plate Sprinkler (O3030FX)
The Nelson Orbitor FX 3030 White Plate Sprinkler is a high-performance, low-pressure center pivot sprinkler engineered to deliver exceptional water distribution and crop coverage. Designed for up-top installations, the Orbitor FX utilizes Nelson's innovative off-axis rotational technology to create a random, rain-like droplet pattern that improves uniformity while reducing wind drift and soil runoff.
Featuring a specially designed white deflector plate, the O3030FX produces larger droplets that penetrate dense crop canopies more effectively, making it an ideal choice for crops such as corn and other tall-growing varieties. Its low operating pressure requirements help reduce energy costs while maintaining excellent irrigation performance.
Built for durability and reliability in demanding agricultural environments, the Orbitor FX 3030 is compatible with Nelson 3030 Series sprinklers and 3NV nozzles. The highly visible white plate also makes field inspection easier, allowing operators to quickly identify plugged or malfunctioning sprinklers.
Key Features
- Low-pressure operation for improved energy efficiency
- Off-axis rotating technology creates a natural, rain-like application pattern
- Large droplet size reduces misting and wind drift
- Excellent performance in dense crop canopies
- Up-top mounting configuration for center pivot systems
- Compatible with Nelson 3030 Series and 3NV nozzle systems
- Durable construction for long service life
- White plate design improves sprinkler visibility during field inspections
PERFORMANCE:
Pressure: 6-10 psi (0.4-0.7 bar)
Diameter: 32-52 ft (9.8-15.8 m)
Nozzle Size: #12-50
Nozzles Not Include
For Nozzles: Click Here
Warranty: Nelson Pivot Sprinklers & Pressure Regulators are warranted for one year from date of original sale to be free of defective materials and workmanship when used within the working specifications for which the products were designed and under normal use and service
