Senninger

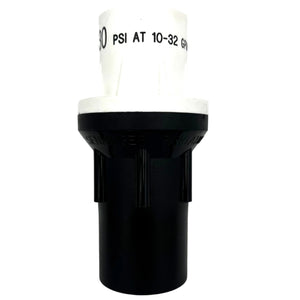

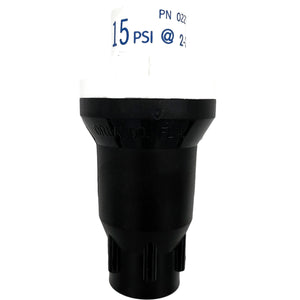

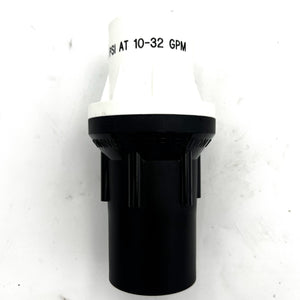

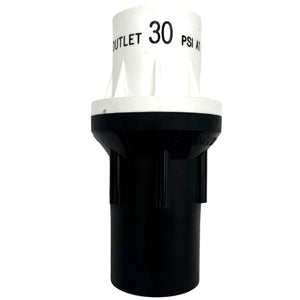

PMR Pressure Regulator (Senninger)
PMR Pressure Regulator (Senninger)
No se pudo cargar la disponibilidad de retiro
The PMR-MF (Pressure-Master Regulator Medium-Flow) is ideal for installations requiring mid-range flows of 2 to 20 gpm (454 to 4542 L/hr), including solid-set, drip and other low-volume irrigation systems.
Models:
- PMR15MF (15 PSI)
- PMR30MF (30 PSI)
- PMR40MF (40 PSI)
Specs:
- 15 PSI: 3/4" FNPT Inlet - 3/4" FNPT Outlet
- 30 PSI: 1" FNPT Inlet - 1" FNPT Outlet
- 40 PSI: 1" FNPT Inlet - 1" FNPT Outlet
Features:
- Senninger irrigation water pressure regulators maintain a constant preset outlet pressure with varying inlet pressures, which alleviates pressure differences that can cause an applicator’s area of coverage to change.
- 100% pressure tested, to ensure quality and performance
- Very low hysteresis and friction losses
- Can be installed above or below ground
- Two-year warranty on materials, workmanship and performance
|
PMR-MF Model |
Operating Pressure/ Max Inlet Pressure |
Flow Range |
|
PMR06MF |
6 psi / 80 psi |
4 – 16 gpm |
|
PMR10MF |
10 psi / 90 psi |
4 – 16 gpm |
|
PMR12MF |
12 psi / 90 psi |
2 – 20 gpm |
|
PMR15MF |
15 psi / 95 psi |
2 – 20 gpm |
|
PMR20MF |
20 psi / 100 psi |
2 – 20 gpm |
|
PMR25MF |
25 psi / 105 psi |
2 – 20 gpm |
|
PMR30MF |
30 psi / 110 psi |
2 – 20 gpm |
|
PMR35MF |
35 psi / 115 psi |
2 – 20 gpm |
|
PMR40MF |
40 psi / 120 psi |
2 – 20 gpm |
|
PMR50MF |
50 psi / 130 psi |
2 – 20 gpm |
|
PMR60MF |
60 psi / 140 psi |
2 – 20 gpm |
|
Connection Inlet/Outlet Sizes |
|
3/4” FNPT, 1” FNPT, 1” F BSPT |
The pressure regulator shall maintain the predetermined operating pressure provided that the inlet pressure is at least 5 psi above the expected outlet pressure, but not exceeding the maximum inlet pressure as shown above.
