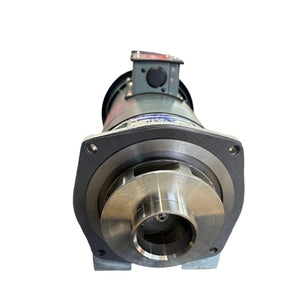

2-HP Pivot Booster Pump (No Volute)
2-HP Pivot Booster Pump (No Volute)
Couldn't load pickup availability
2 HP Pivot Booster Pump UMC Motor
No Volute
Pump with Motor and Case
XCAD: Bracket/Spacer/Impeller
UMC: Motor (Motor Info Below)
- Assembled in the USA
- TEFC 2HP (1.5SF) 60/50Hz PEM/IE3 Wash Down Duty Motor
- Aluminum stator can allows for superior heat dissipation and longer motor life
- Stainless steel fan shroud and stator canopy provide superior protection and corrosion resistance
- Motor weep holes eliminate moisture accumulation
- Automatic reset thermal protector
- Die cast aluminum junction box with threaded NPT connections
- CSA and CE certified motor
XCAD USA Pivot Booster Pumps are engineered and built in Idaho using only the highest quality Parts and Stainless Steel Impellers.
- 3 Phase Wiring
Nominal RPM: 3600
Based on Fresh Water @ 80°F
Maximum Working Pressure: 100 psi
Compatible with: Valley / Zimmatic / Lindsay / Reinke
