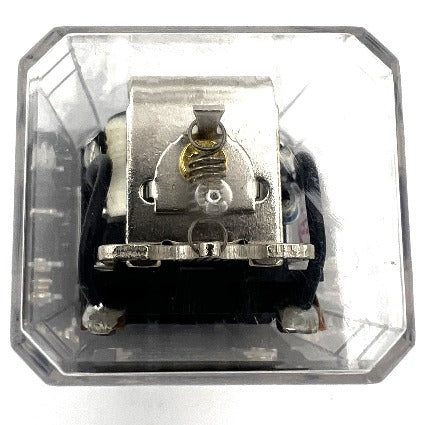

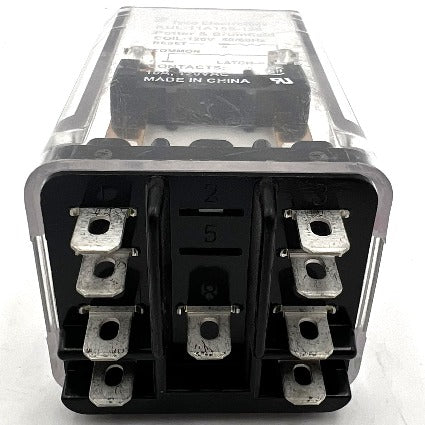

Latching Relay (Ice Cube Relay) 9 Blade

Latching Relay (Ice Cube Relay) 9 Blade

Regular price $114.99
Regular price Sale price $114.99
Sale Sold out
Shipping calculated at checkout.

Latching Relay

Manufacturer Part No: KUL-11A15S-120

Newark Part No.: 17M9930

Also Known As: 2-1393115-6

Power Relay, DPDT, 120 VAC, 10 A, KUL Series, Socket, Latching Single Coil

  • Single coil relay
  • Enclosed magnetic latching relay

Product Overview:

The KUL-11A15S-120 is a general-purpose Latching Panel Plug-in Relay with AC coil. This KUL-series socket mount relay has 2-form-C (DPDT) AgCdO contacts. 4.75mm (0.187-inch) quick-connect terminal, socket mount with plain case. Reset occurs by reversing polarity in a single coil relay. Class B coil insulation.
  • -45 to 70°C Operating temperature range
  • RT I Environmental protection rating

Applications:

Industrial, Motor Drive & Control, Clock & Timing, Automation & Process Control

Specs:

  • Contact Configuration: DPDT
  • Coil Voltage: 120 VAC
  • Contact Voltage VAC: 250VAC
  • Relay Mounting: Panel Mount
  • Coil Type: Latching Single Coil
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Quick Connect
  • Contact Voltage VDC: 28VDC
  • Contact Material: Silver Cadmium Oxide
  • Coil Resistance: 3.7 kohm
