Nelson
Nelson Orbitor 3030 Pivot Sprinkler (Purple Plate)
Nelson Orbitor 3030 Pivot Sprinkler (Purple Plate)
Couldn't load pickup availability

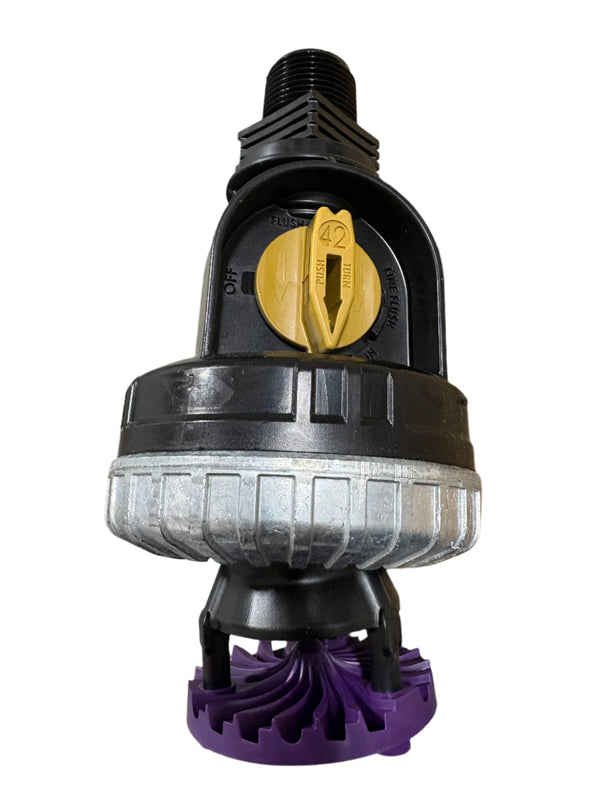

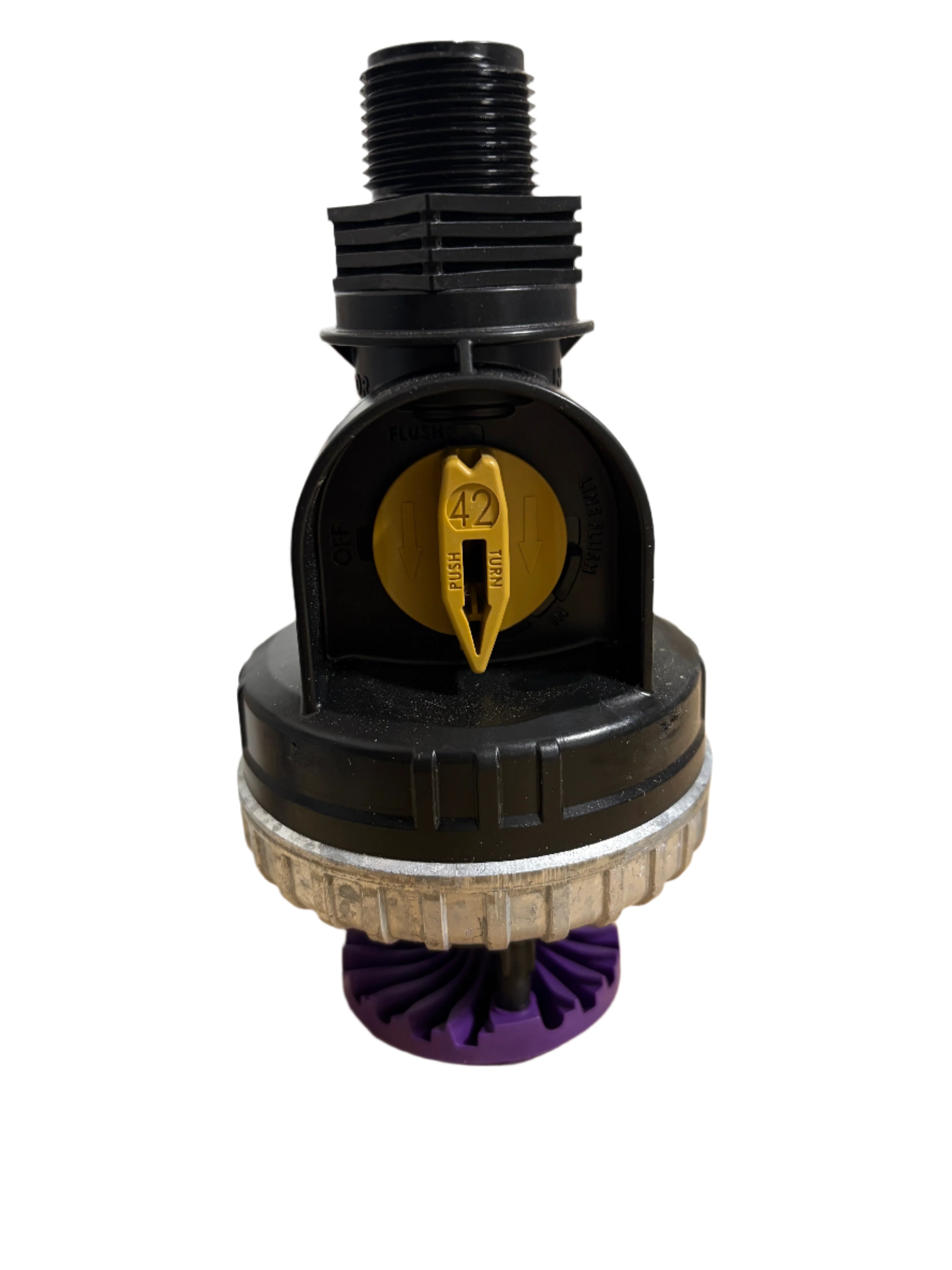

Orbitor 3030 with Purple Plate
Streamlined Design
Designed with an innovative, bracketless assembly, debris hang up and water pattern misting common to conventional sprinklers are mitigated. Irrigators can expect long wear life, reliable operation, and durability, even in the toughest water conditions. The Orbitor is streamlined for excellent movement through canopy and over field obstacles.
Reduced Wind Drift and Evaporative Loss
Strutless sprinkler body design reduces droplet breakup, drift and drool.
Great Retrofit for Poly Weight Systems
The Orbitor is also available without the integrated weight for systems with existing weights. This plastic-cover version is a great retrofit option for systems that already have poly weights. It requires 3/4” NPT threaded weights only. Do not use any other slip weights. Pressure regulate to 10 psi (0.7 bar).
IMPORTANT! The Orbitor requires a minimum of 2’ (0.6 m) of reinforced flexible hose in the mounting assembly
At the heart of the 3030 Series is the new 3NV Nozzle. This innovative dial-nozzle combines multiple functions - nozzle flush, line flush, shutoff - all without removing the nozzle. (Press, Spin, Click)
- Prevent Overwatering: Use the integrated shutoff to selectively turn off sprinklers, especially in the first span. Eliminates the need for a ball valve on every sprinkler.
- Superior Flushing: a quick and simple turn of the nozzle is all it takes to clean plugged sprinklers.
- Save Labor: 3NV systems are easier to install and maintain.
Pressure: 6-20 psi (0.4-1.4 bar)
Diameter: 36-60 ft (11-18.3 m)
Nozzle Size: #11-50 (Item in phono shown with Yellow #23 Nozzle *Sold Separately)
Plate Color: Purple Plate
Small droplets for tight soil or small seeds.
Gentle, small drops: The purple plate offers small droplets which gently apply the water. This is important where specialty crops and higher cash value crops are planted and soil sealing is a concern.
Lower application rate at first spans: Can be used in combination with the black or blue plate in the first 2 spans of the pivot to apply a more gentle application where soil sealing can commonly occur
For Nozzles: Click Here
Warranty: Nelson Pivot Orbitor Sprinklers & Pressure Regulators are warranted for one year from date of original sale to be free of defective materials and workmanship when used within the working specifications for which the products were designed and under normal use and service
